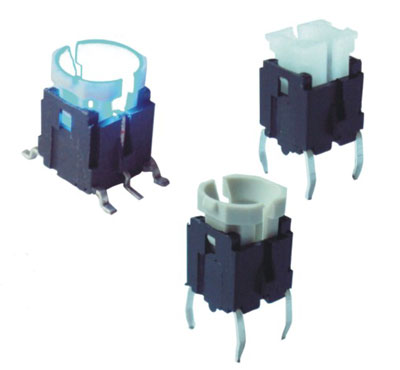

帶燈輕觸開關R590A

• Rating：12VDC 50mA

• Contact Resistance：100mΩ Max

• Insulation Resistance：100MΩ min(250VDC)

• Dielectric Strength：250VAC 50/60Hz FOR 1 min

• Operating Force：160±50g/250±80g

• Electric Life：100,000 cycles

• Operating Temperature Range：-20℃ ~ + 70℃

• Travel：0.25±0.1 mm

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Electric Life	Operating Temperature Range	Travel	PDF下載
R590A-1L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-1	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-2L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-2	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-3L(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-3	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-4	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-3ML(With LED)	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-3M	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
R590A-1G	12VDC 50mA	100mΩ Max	100MΩ min(250VDC)	250VAC 50/60Hz FOR 1 min	160±50g/250±80g	100,000 cycles	-20℃ ~ + 70℃	0.25±0.1 mm	暫無
